MAS

Features

Kiepe belt misalignment switches type MAS are used to monitor the misalignment of conveyor belt systems in accordance with the requirements of EN 620. They are used to protect the system from damage or destruction in the event of belt misalignment and are installed in pairs on both sides of the upper or lower run in areas at risk. The Kiepe belt misalignment switch type MAS is compliant with the Low Voltage Directive 2014/35/EU and UKCA conformity is available. The use of glass fiber reinforced plastic and stainless steel is aimed in particular at use in aggressive environments, i.e. potash and salt plants, seaports as well as in recycling and composting plants. As standard, the switches are manufactured with two switching elements with self-cleaning contacts. The misalignment switch may only be used in control circuits.

Corrosive

Powder: Suitable
Gravel: Not Suitable
Rubble: Not Suitable

Non-Corrosive

Powder: Suitable
Gravel: Not Suitable
Rubble: Not Suitable

Bezeichnung	Schieflaufschalter Typ MAS
Betätigungsart	Bidirektional (zweiseitig wirkend) über Rollenhebel
Erfüllte Vorschriften	DIN EN 60947-5-1
Geeignet für	Steuerkreise nach DIN EN 60204-1

Allgemein

Gehäuse	PA, glasfaserverstärkt, UV-stabilisiert
Rollenhebel	PA, ∅ 25mm

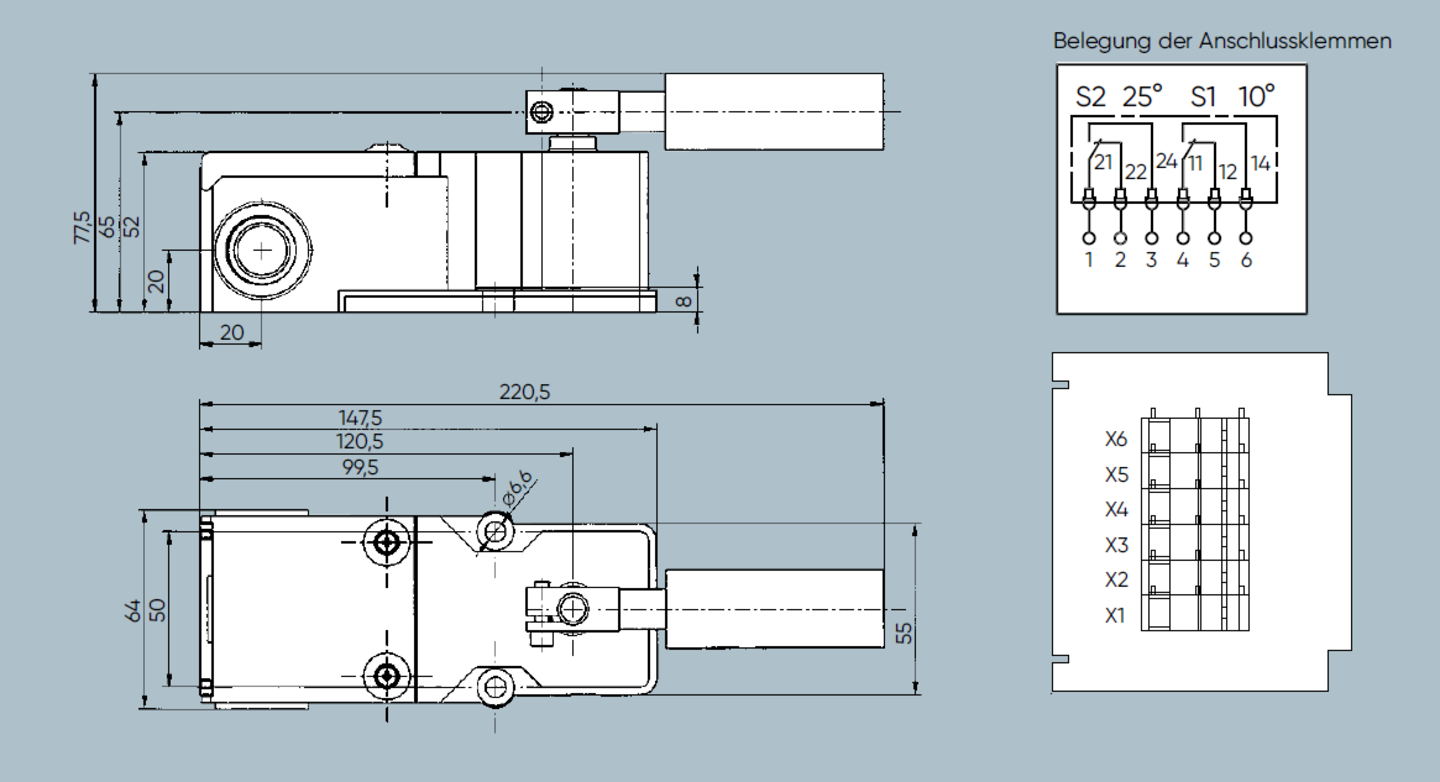

Befestigung	2 x M6
Auslenkung Rollenhebel (max.)	+/-90°
Gewicht	0,49 kg

Mechanik

Schaltsystem (max.)	2 Wechsler NO/NC, zwangsöffnend
Schaltbereich	10° + 25°
Leitungseinführung (im Lieferumfang enthalten)	3 x M25 x 1,5; mit roter Transportsicherung verschlossen (1x PA Kabelverschraubung; Dichtbereich Ø 6mm bis Ø 12mm; 2x Verschlussschraube
Gebrauchskategorie	AC-15, AC 230 V / 1,5 A DC-13, DC 60 V / 0,5 A
Anschlussleitungsquerschnitt (max.)	2,5 mm²
Bemessungsisolationsspannung U_i	250 V
Thermischer Dauerstrom I_th	6 A
