SLS

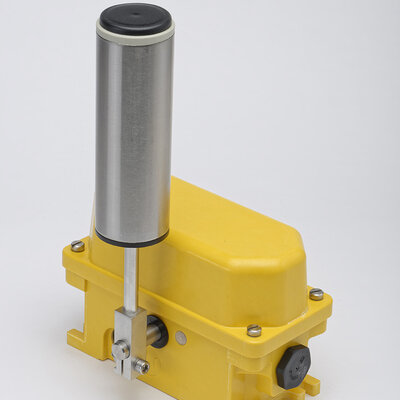

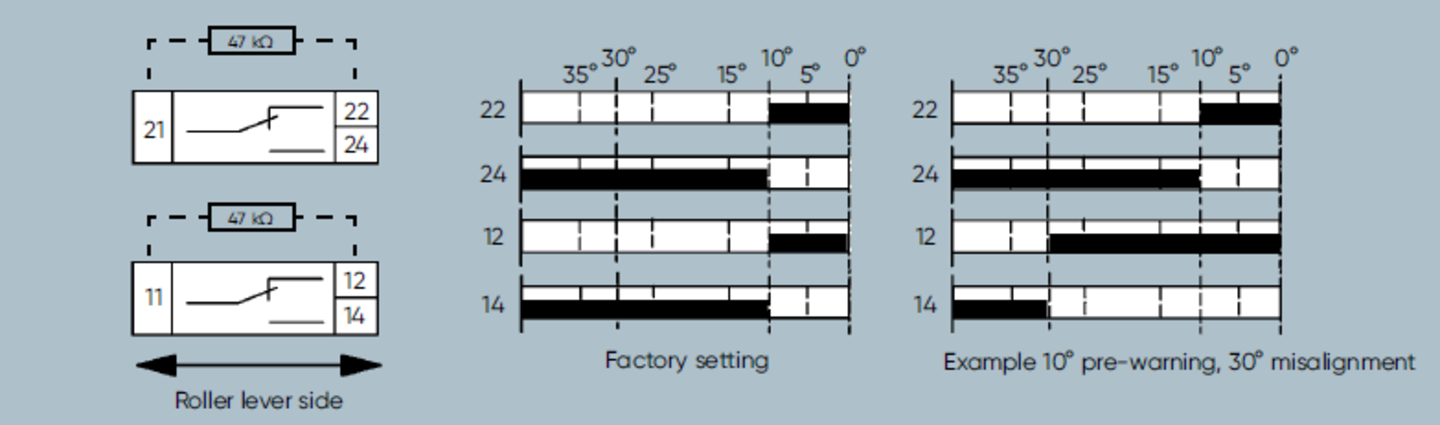

Kiepe belt misalignment switches type SLS are used to monitor the misalignment of conveyor belt systems in accordance with the requirements of EN 620. They are used to protect the system from damage or destruction in the event of belt misalignment and are installed in pairs on both sides of the upper or lower run in areas at risk. The ball-bearing actuating roller made of alloy steel and with a large roller diameter is resistant to wear that occurs when the moving belt touches the roller. The Kiepe belt misalignment switch type SLS conforms to the Low Voltage Directive 2014/35/EU and is UKCA compliant. It has a robust thermoset housing and can be equipped with up to 4 positively actuated changeover contacts with snap-action function. It has two adjustable switching points. The misalignment switch may only be used in control circuits.

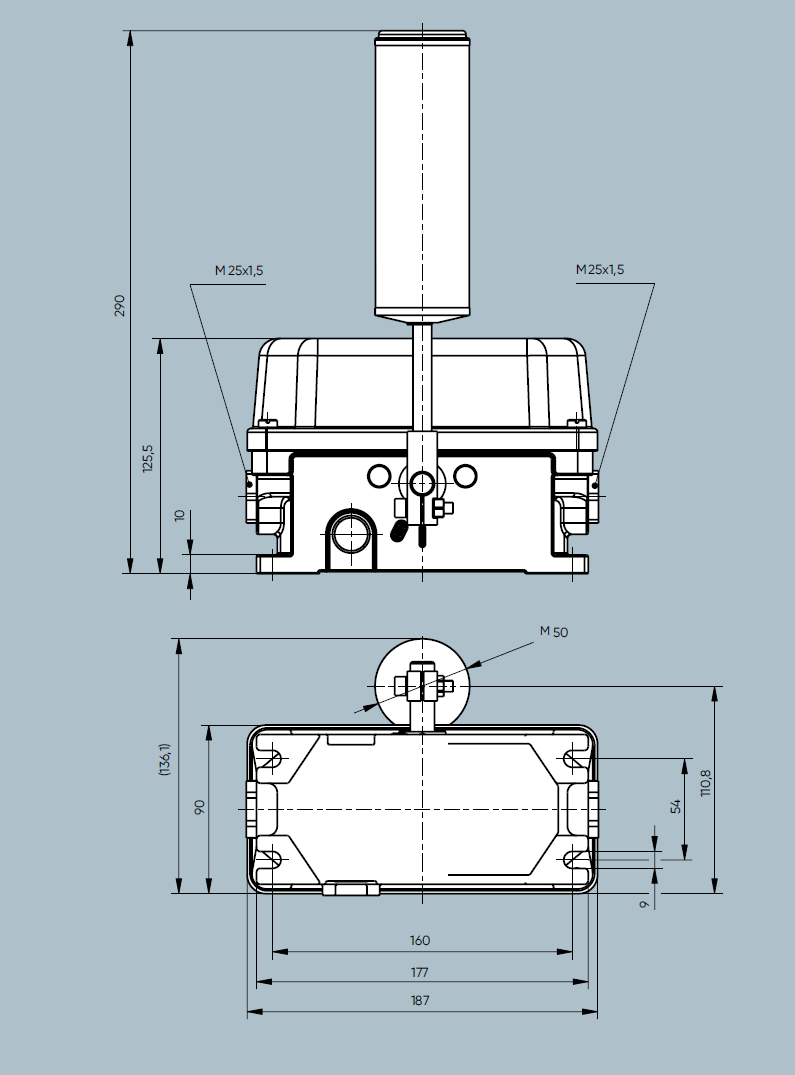

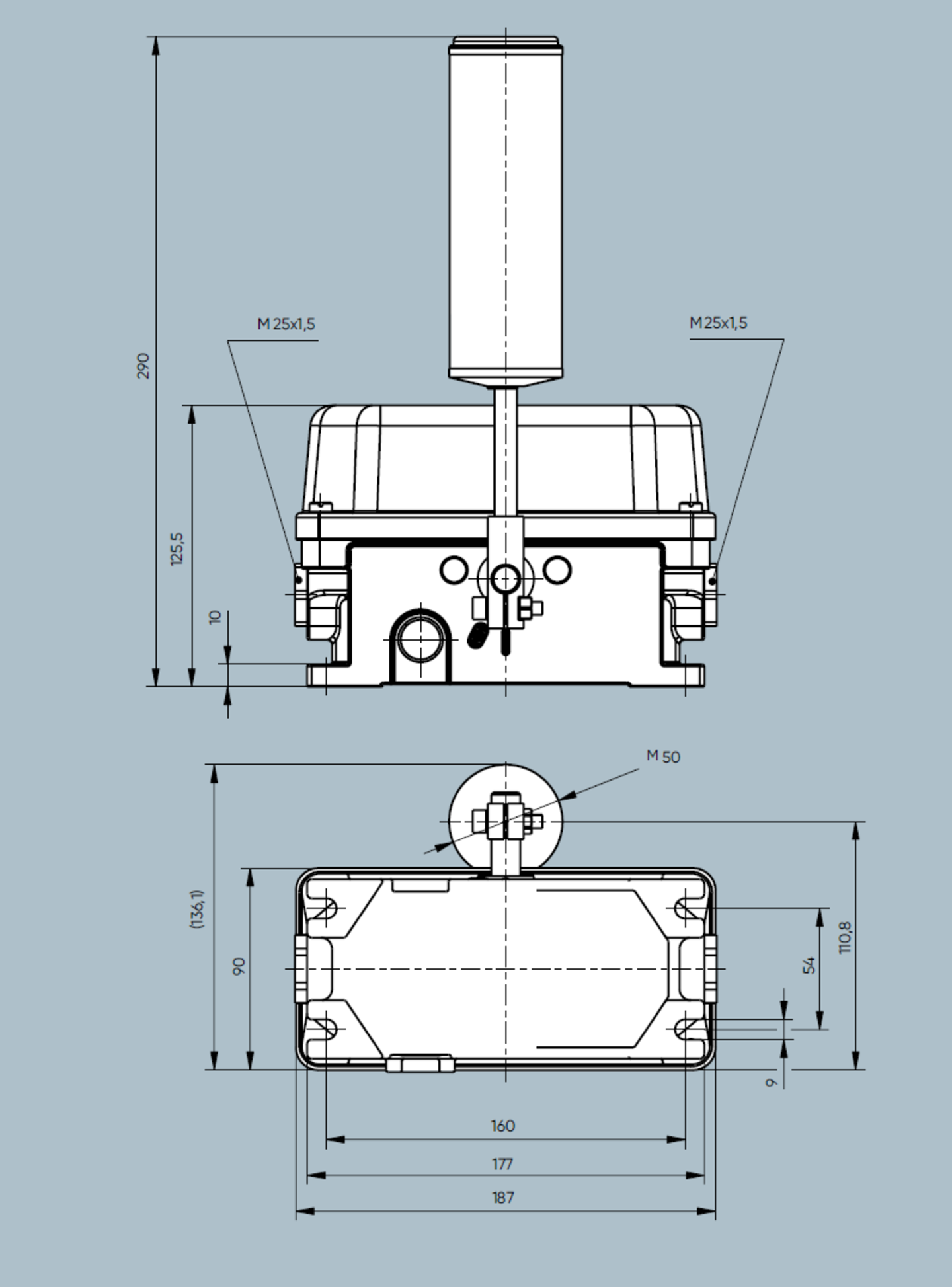

Misalignment switches of type SLS [1] are fastened to a substructure with 4 M8 screws each. In the event of misalignment, the belt [2] must not leave the lateral guide rollers [3]. The position of the belt misalignment switches must be selected so that the actuating roller of the belt misalignment switch is preferably approached vertically by the belt [2]. During normal operation, the actuating roller of the belt misalignment switch is not touched. The roller lever is interchangeable and can be freely fixed in the direction of rotation on the switch axis. The electrical connection is made when the device is open via the cable gland included in the scope of delivery directly to the connection glands of the switching elements.
