HEN
Article Number: 91.043 450.xxx
- Installation: Double-side
Alu housing
Features
Kiepe pull-rope emergency stop switches type HEN are used in accordance with the requirements of EN 620 as well as BGI 710 and in conformity with DIN EN ISO 13850 as emergency stop devices as supplementary safety measures on conveyor belt systems. The pull rope is symmetrically tensioned on both sides of the red release lever.
The devices are suitable for outdoor use and applications where the ambient temperature varies considerably.
With the pull-rope system functionally aligned, the emergency stop signal can be triggered over a distance of up to 2 x 125 m for each switch.
Kiepe pull-rope emergency stop switch types HEN comply with Machinery Directive 2006/42/EC and UKCA conformity is available.
They must only be used in control electrical circuits.
The HEN aluminium housing offers space for up to 3 simultaneously switching NO and NC contacts. Taking into consideration the safety data and maintenance recommendations, the pullrope emergency stop switch type HEN can be used in safety circuits in accordance with DIN EN ISO 13849 up to Performance Level d (PLd).
Corrosive
- Powder
- Conditionally Suitable
- Gravel
- Suitable
- Rubble
- Conditionally Suitable
Non-Corrosive
- Powder
- Suitable
- Gravel
- Suitable
- Rubble
- Conditionally Suitable

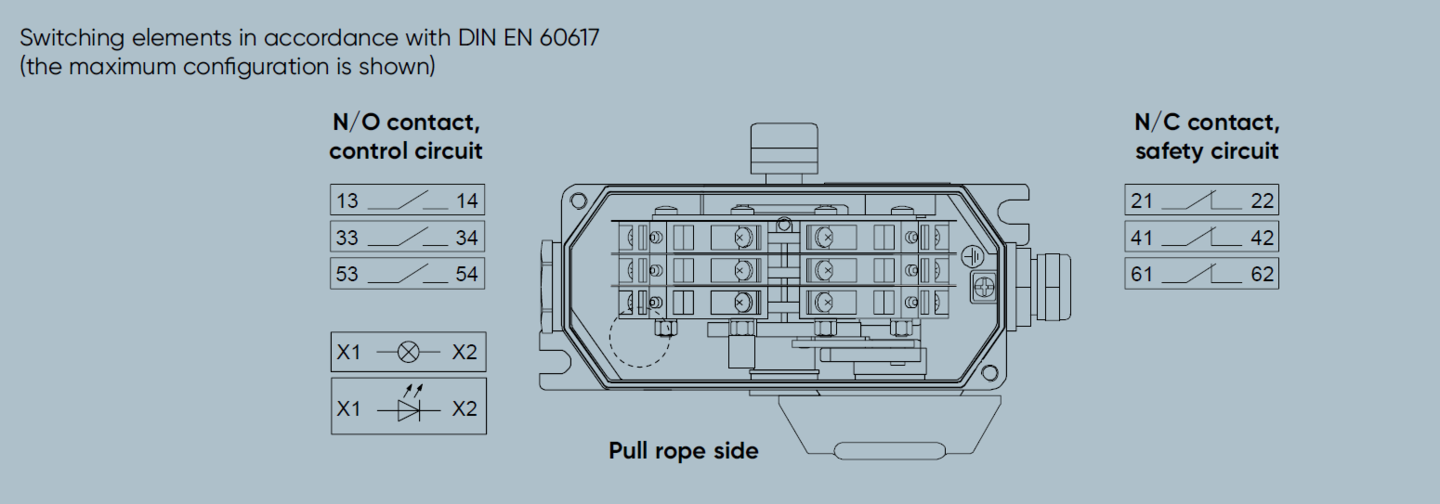

The pull-rope emergency stop switch is actuated by a pull rope [1] connected on both sides of the red release lever. The contacts are actuated by a spring supported cam disc (snap action function). At the same time, up to three NC and NO contacts are actuated simultaneously and a cross comparison of the contacts can be performed with an external control unit. The emergency stop signal is performed with positive-making normally closed (NC) contacts in accordance with the closed circuit principle.
After the emergency stop function is triggered, the switching mechanism is locked in the shut-off position "0". When the blue reset lever is actuated in switch position "1", the switching contacts are reactivated and the conveyor belt is prepared for being turned back on again.
Note
Resetting the pull-rope emergency stop switch must not cause the conveyor system to start up.
| Designation | Pull-rope emergency stop switch type HEN – emergency stop device with latching function |
|---|---|
| Type of actuation | Bidirectional (double-side) |
| Complies with | DIN EN 60947-5-5; IEC 60947 -5-5 |
| Suited for | Control circuits in accordance with DIN EN 60204-1 |
| Enclosure | Aluminum |
|---|---|
| Finish | PU 2K -paint Enclosure – yellow (RAL 1004), release lever – red (RAL 3000), reset lever – blue (RAL 5010) |
| Mounting | 2 x M8 |
| Pull-rope length (approved, max.) | 2 x 125 m (dependent from design of external tension springs and max. temperature change) |
| Actuation force | 30 N ± 10 N |
| Weight | 1.7 kg |
| Switching system | Up to 3 NC and NO contacts; cam operated positve-opening switches (EN 60947-5-1) |
|---|---|

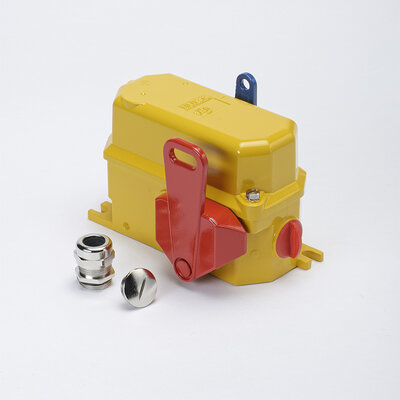

| Cable entry (included in scope of supply) | 2 x M25 x 1,5, with red transport lock (1x screwed cable gland: sealing area Ø 11 mm to Ø 16 mm; 1x dummy screw) |
| Utilization category | AC-15: 230 V / 6 A DC-13: 125 V / 0,8 A DC-13: 24 V / 2 A |
| Connection cross section (max.) | 2.5 mm2 |
| Protective conductor connection | Protection class I / Protective earthing |
| Rated insulation voltage Ui | 400 V |
| Rated impulse withstand voltage Uimp | 2.5 kV, degree of pollution 3 |
| Conventional thermal current Ith | 16 A |
| Permissible ambient temperature | –25 °C …+70 °C |
|---|---|
| Extended ambient temperature range | –40 °C …+70 °C (type HEN 7xx) |
| Protection rating (EN 60529) | IP 67 |
| Safety classification Depending upon system architecture | DIN EN ISO 13849 -1 (up to PLd) DIN EN 62061 (up to SIL 2) | |
|---|---|---|
| Electrical Reliability | DC-13: 24 V / 2 A AC-15: 230 V / 6 A | B10d > 25.000 cycles B10d >25.000 cycles |

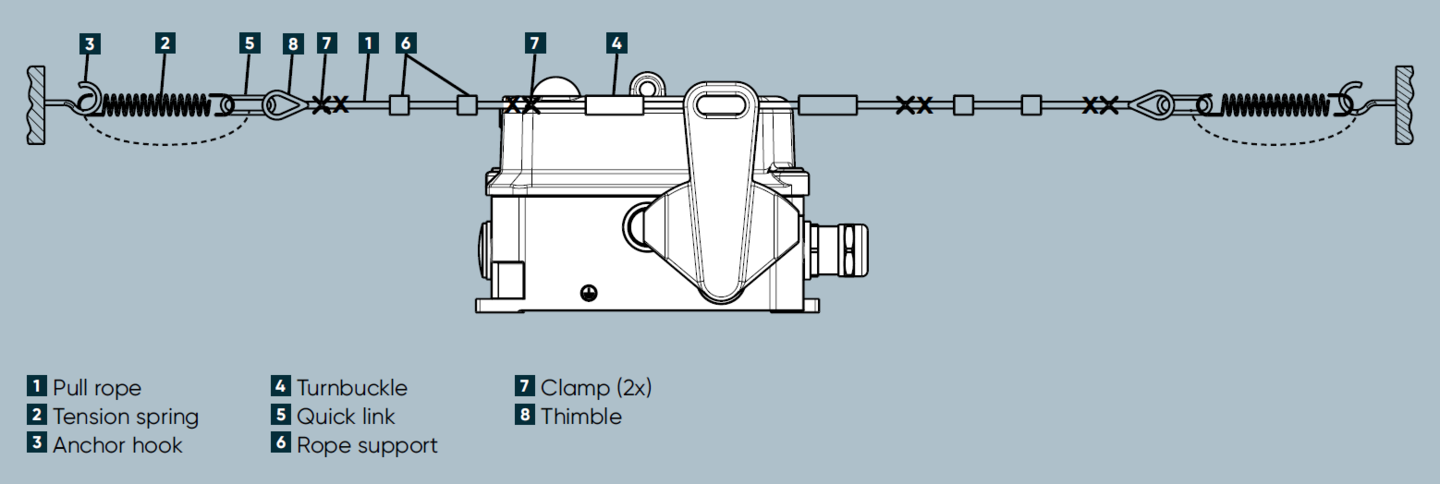

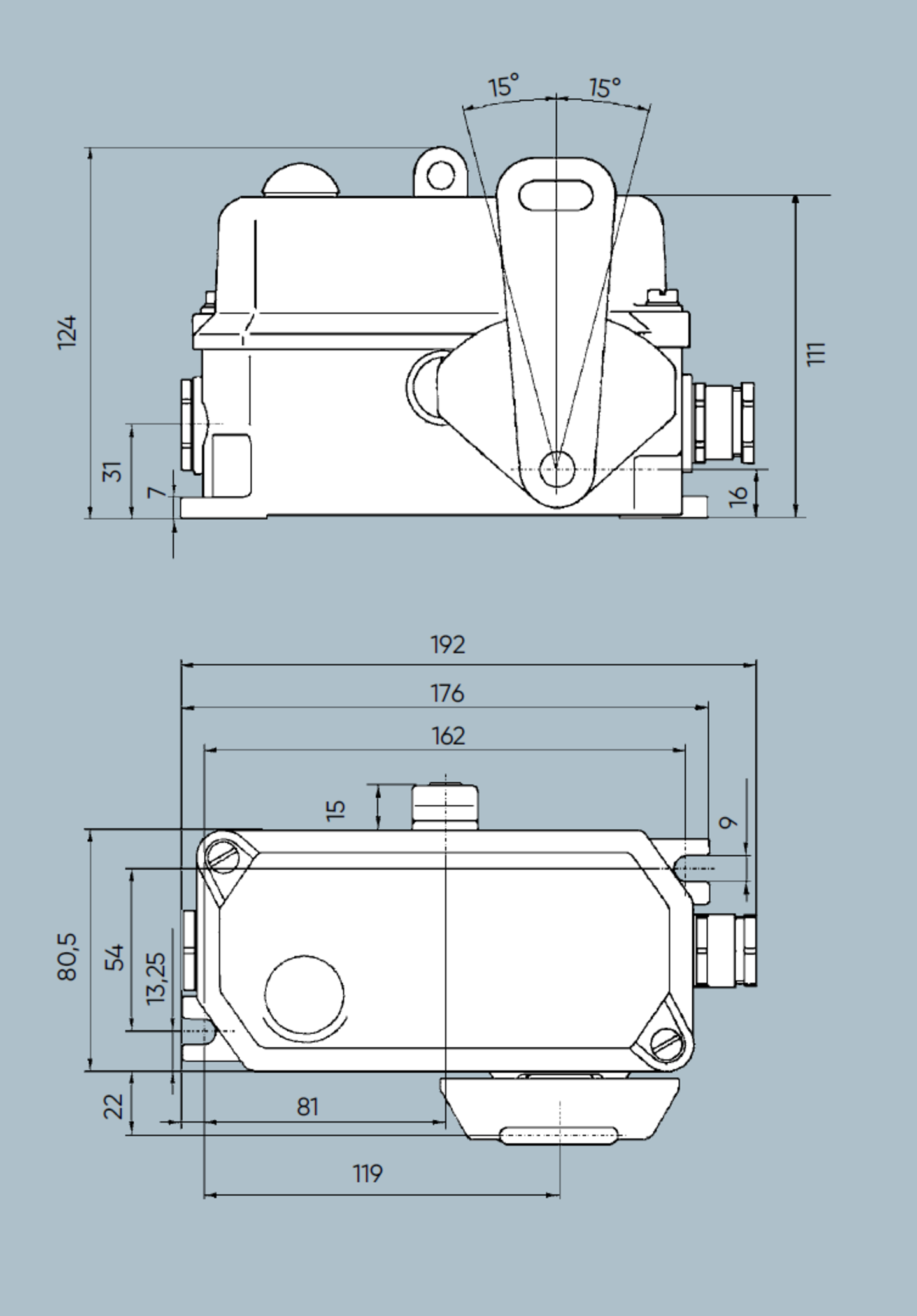

Pull-rope emergency stop switches of types HEN are each fastened to the substructure in installation position with 2 M8 screws, centered between the anchor hook [3] of the pull-rope system (see the mounting diagram).
Electrical connection is performed with the device open using the screwed cable gland included in the delivery, directly on the screw joints of the switching elements. The pull-rope [1] is tensioned by tension springs [2] between the anchor hooks [3] and fastened at the red release lever. After the tension springs [2] have been adjusted, the actuation force and path for triggering the switch must be tested to ensure compliance with specified requirements.
Note:
The tension springs are designed for cable systems with Kiepe
devices at recommended temperature changes in a straight
installation. Deviations from this may require a different spring
design or an adjusted tension of the spring for wire break
detection.
Variants

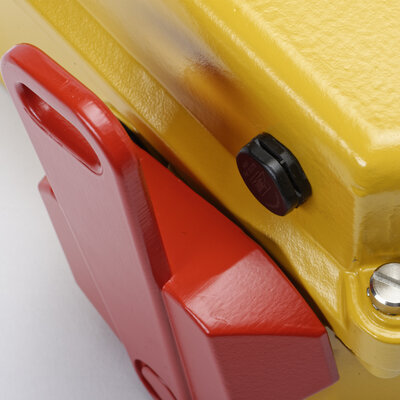

| Name | Ordering No. | Weight | Contacts NC NO SPDT | Signal Light LED | Pressure Equalization |
|---|---|---|---|---|---|
| HEN 001 | 91.043.450.001 | 1.4 kg / 1 Unit | 1 1 | ||
| HEN 002 | 91.043.450.002 | 1.6 kg / 1 Unit | 2 2 | ||
| HEN 003 | 91.043.450.003 | 1.6 kg / 1 Unit | 3 3 | ||
| HEN 004 | 91.043.450.004 | 1.6 kg / 1 Unit | 1 1 | AC/DC 230 V | |
| HEN 005 | 91.043.450.005 | 1.6 kg / 1 Unit | 2 2 | AC/DC 230 V | |
| HEN 006 | 91.043.450.006 | 1.6 kg / 1 Unit | 3 2 | AC/DC 230 V | |
| HEN 008 Reset by square section key | 91.043.450.008 | 1.4 kg / 1 Unit | 1 1 | ||
| HEN 009 Reset by square section key | 91.043.450.009 | 1.6 kg / 1 Unit | 2 2 | ||
| HEN 012 Reset by square section key | 91.043.450.012 | 1.6 kg / 1 Unit | 2 2 | AC/DC 230 V | |
| HEN 017 | 91.043.450.017 | 1.4 kg / 1 Unit | 1 1 | Available | |
| HEN 018 | 91.043.450.018 | 1.6 kg / 1 Unit | 2 2 | Available | |
| HEN 023 | 91.043.450.023 | 1.4 kg / 1 Unit | 1 (Au) 1 (Au) | ||
| HEN 024 | 91.043.450.024 | 1.6 kg / 1 Unit | 2 (Au) 2 (Au) | ||
| HEN 025 | 91.043.450.025 | 1.6 kg / 1 Unit | 3 (Au) 3 (Au) | ||
| HEN 038 | 91.043.450.038 | 1.5 kg / 1 Unit | 3 | ||
| HEN 040 | 91.043.450.040 | 1.5 kg / 1 Unit | 2 1 | ||
| HEN 061 | 91.043.450.061 | 1.6 kg / 1 Unit | 3 (Au) 3 (Au) | Available | |
| HEN 211 with standard 2-wire busmodule | 91.043.450.211 | 1.6 kg / 1 Unit | 2 1 (Au) 1 Used | ||
| HEN 212 with standard 2-wire busmodule | 91.043.450.212 | 1.6 kg / 1 Unit | 2 (Au) 1 (Au) 1 Used | ||
| HEN 213 for 2-wire busmodule, no busmodule | 91.043.450.213 | 1.6 kg / 1 Unit | 2 1 (Au) 1 Used | ||
| HEN 214 for 2-wire busmodule, no busmodule | 91.043.450.214 | 1.6 kg / 1 Unit | 2 (Au) 1 (Au) 1 Used | ||
| HEN 221 for 2-wire safebus, no busmodule | 91.043.450.221 | 1.6 kg / 1 Unit | 1 (Au) 1 Used | ||
| HEN 222 for 2-wire safebus, no busmodule | 91.043.450.222 | 1.6 kg / 1 Unit | 2 (Au) 1 Used | ||
| HEN 231 with 2-wire safebus, busmodule included | 91.043.450.231 | 1.7 kg / 1 Unit | 1 (Au) 1 Used | ||
| HEN 232 with 2-wire safebus, busmodule included | 91.043.450.232 | 1.7 kg / 1 Unit | 2 (Au) 1 Used | ||
| HEN 501 (UL) | 91.043.450.501 | 1.8 kg / 1 Unit | 1 1 | ||
| HEN 502 (UL) | 91.043.450.502 | 1.8 kg / 1 Unit | 2 2 | ||
| HEN 505 (UL) | 91.043.450.505 | 1.8 kg / 1 Unit | 2 2 | AC 130 V | |
| HEN 506 (UL) | 91.043.450.506 | 1.8 kg / 1 Unit | 3 2 | AC 130 V | |
| HEN 509 (UL), Reset by square section key | 91.043.450.509 | 1.8 kg / 1 Unit | 2 2 | ||
| HEN 701 (-40°C) | 91.043.450.701 | 1.6 kg / 1 Unit | 1 1 | ||
| HEN 702 (-40°C) | 91.043.450.702 | 1.6 kg / 1 Unit | 2 2 | ||
| HEN 703 (-40°C) | 91.043.450.703 | 1.6 kg / 1 Unit | 3 3 | ||
| HEN 724 (-40°C) | 91.043.450.724 | 1.5 kg / 1 Unit | 2 (Au) 2 (Au) | ||
| HEN 905 | 91.043.450.905 | 1.9 kg / 1 Unit | 2 (Au) 2 (Au) | AC/DC 24 V | Available |
